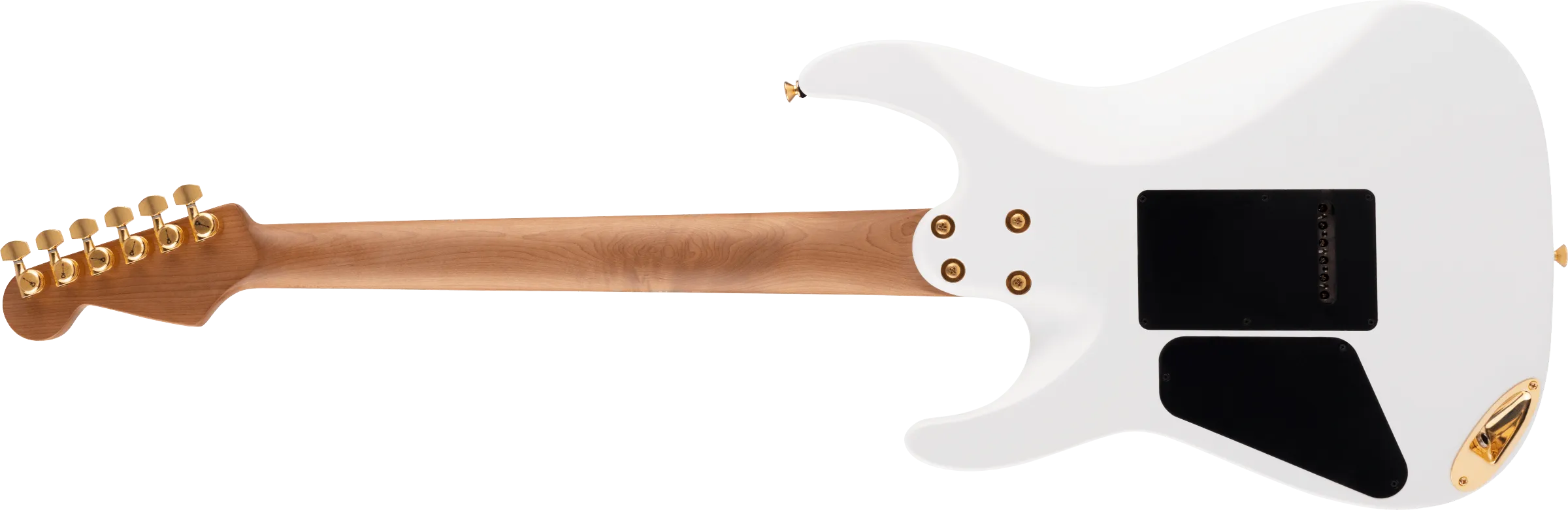

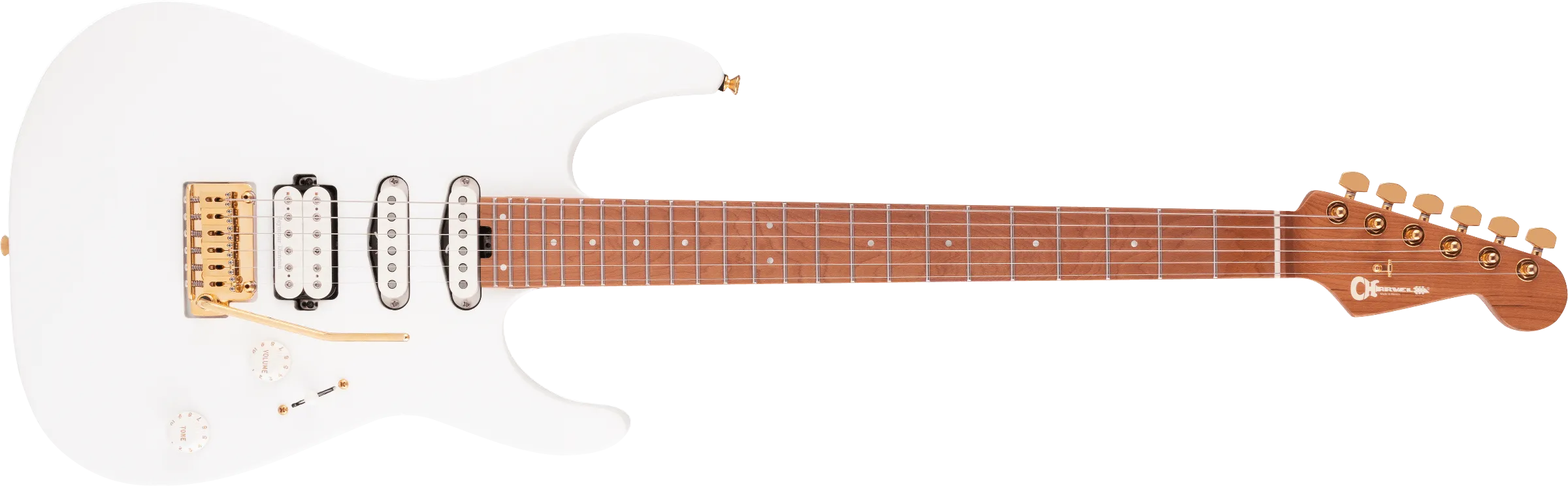

Charvel® once again reaches new heights of modern high performance combined with elegant style and crushing tone with the Pro-Mod DK24 HSS 2PT CM, a stunning new instrument designed especially for a new breed of player whose musical vision and versatility knows no boundaries.
Neck
Fingerboard Material
Caramelized Maple
Fingerboard Radius
12"-16" Compound Radius (304.8 mm to 406.4 mm)

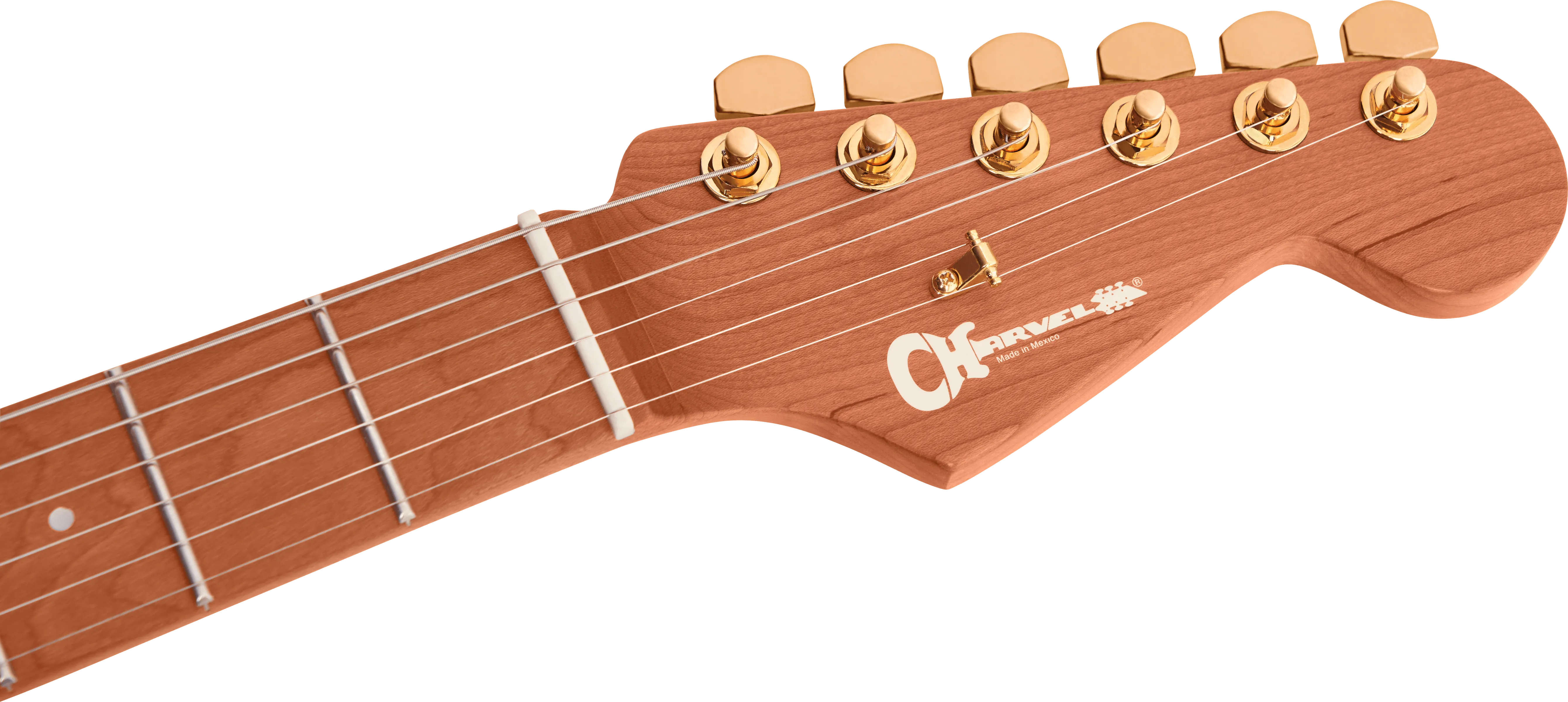

Headstock
Licensed Fender® Stratocaster®
Neck Construction
Bolt-On with Graphite Reinforcement
Neck Finish
Hand-Rubbed Satin Urethane
Neck Material
Caramelized Maple
Neck Shape
Speed Neck with Rolled Fingerboard Edges
Number of Frets
24
Nut Material
Graph Tech® TUSQ® XL
Nut Width
1.6875" (42.86 mm)
Position Inlays
4mm Pearloid Dot
Side Dots
Luminlay®
String Nut
Graph Tech® TUSQ® XL
Truss Rod
Dual-Action with Wheel
Truss Rod Nut
Heel-Mount Truss Rod Adjustment Wheel
Body
Body
Alder
Body Finish
Satin
Body Material
Alder
Body Shape
Dinky™
Body Style
Solid Body
Hardware
Bridge
Gotoh® Custom 510 Tremolo
Control Knobs
Stratocaster®-Style Skirt
Hardware Finish
Gold
Neck Plate
None - 4-Bolt Sculpted Heel
Pickguard
None
Pickup Covers
Parchment
Strap Buttons
Standard
String Trees
Fender® Standard String Guide
Strings
Nickel Plated Steel (.009-.042 Gauges)
Switch Tip
Parchment
Tremolo Arm
Gotoh®

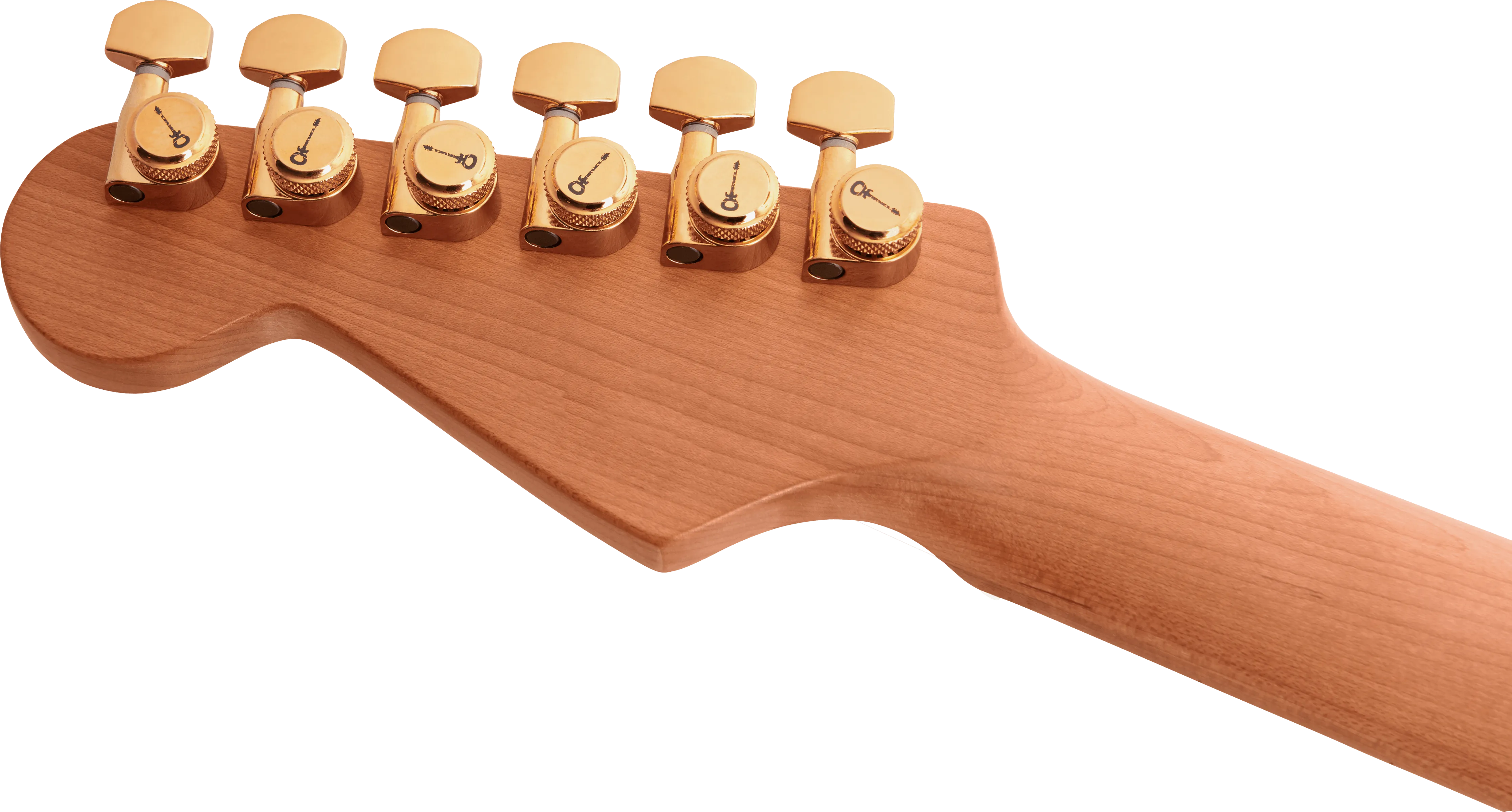

Tuning Machines
Charvel®-Branded Die-Cast Locking
Electronics
Bridge Pickup
Custom Seymour Duncan® Full Shred™ SH-10B
Controls
Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Middle Pickup
Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
Neck Pickup
Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil
Pickup Configuration

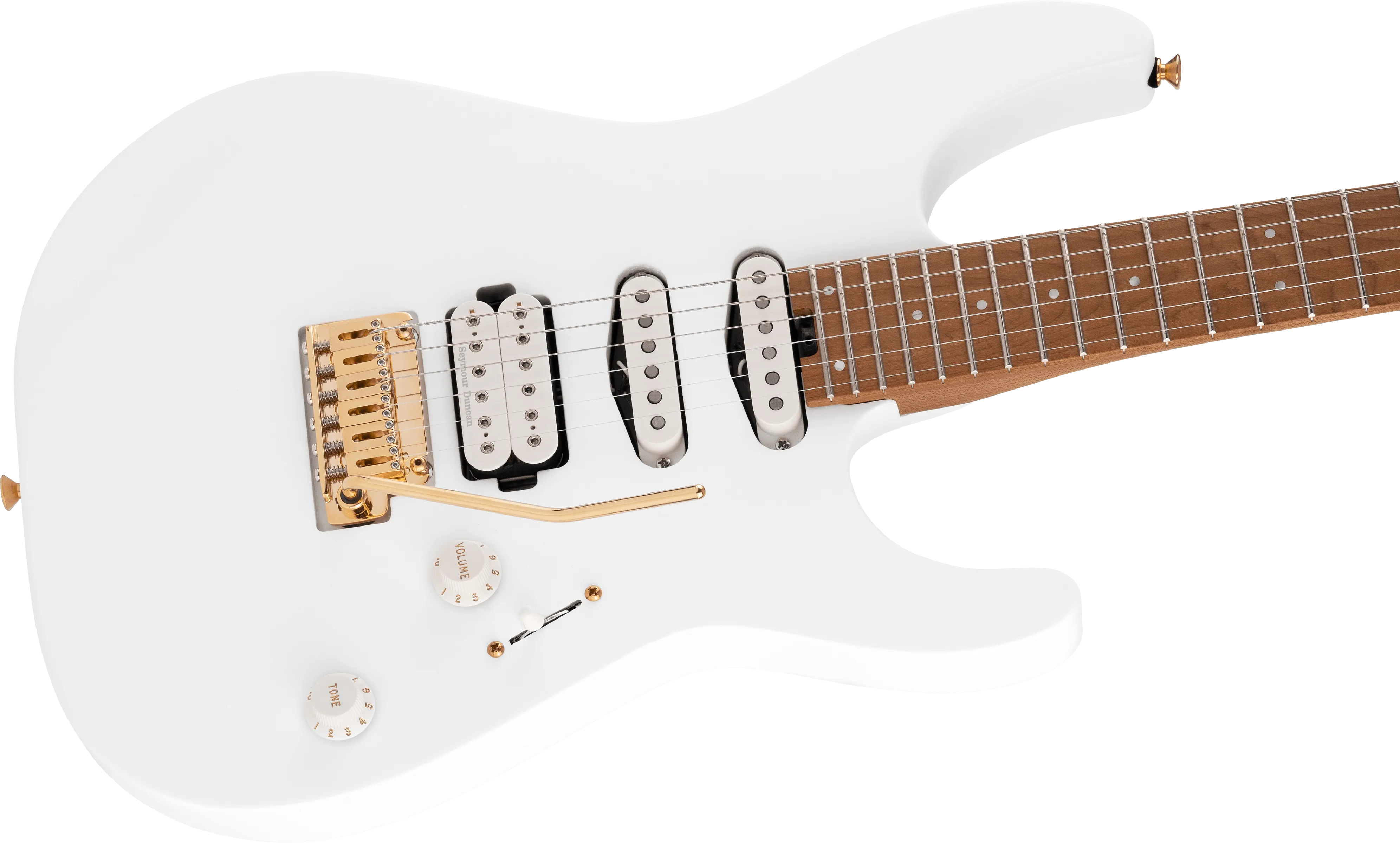

HSS
Switching
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
